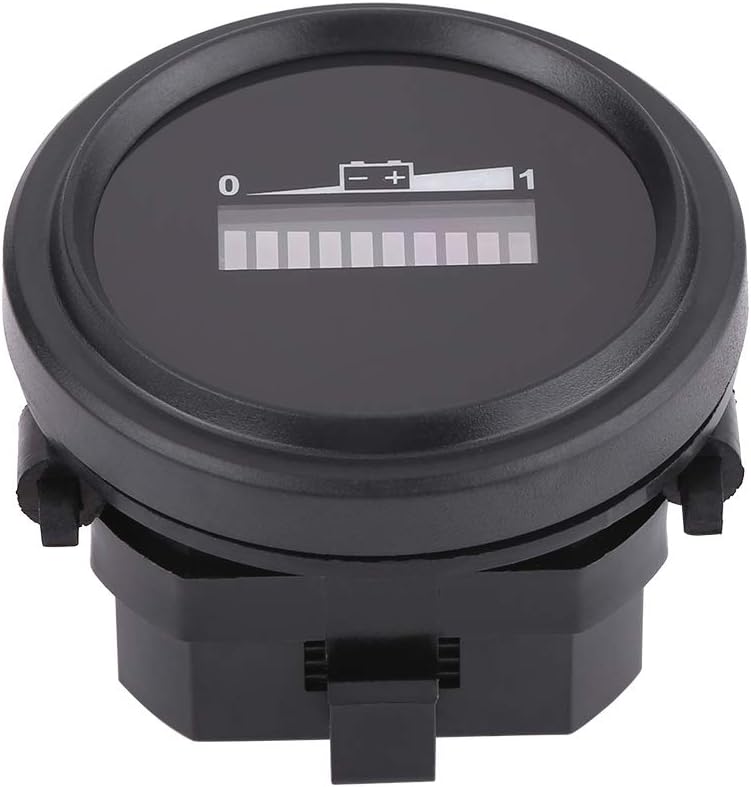

Battery Fuel Gauge Meter, 12V/24V/36V/48V/72V LED Digital Battery Indicator Meter Gauge for Golf Cart

Features:It works for 12V/24V, 36V, 48V/72V battery.LED Flash for low charge and high charge warning.Specifically designed to monitor the power level of battery while charging or discharging.Display of 10 segment LED bar graph.Memory option to recall quantity of electricity.High reliability, wide operating voltage and temperature range.Specifications:Operating Voltage: 12V/24V, 36V, 48V/72VOperating Current: 20mA nominalAccuracy: +/- 0.5%Operating Temperature: -40℃ - +85℃Humidity: 95% RH (non-condensing) at 32℃ or more for 2 hoursWaterproof: IP65Package Weight: approx. 68gFitment: for Golf Cart or other 12V/24V/36V/48V/72V volt DC battery powered equipmentPackage Included:1 x Battery Indicator1 x Set of AccessoriesNote:Please connect the suitable voltage, as the mark in the back side of battery indicator. Voltage too high or too low will makes the battery indicator damaged or work abnormally.

• [Multifunctional Meter] It is a multifunctional meter which include functions of battery capacity meter and hour meter;Display the battery capacity by LED bars, and display the total running hours by LCD screen
• [Battery Fuel Gauge] It can be used on lead-acid battery (but not Trojian's)powered device to indicate the remain capacity;there are 10 LED bars with 3 colors(red,green,yellow) to display,10% capacity per bars
• [Fitment] 3 voltage pins for 12V to 24V,36V and 48V to72V; It is only lighten the LED bar of current battery capacity whatever connect with key switch or direct connection.
• [Hour Meter] It also have function to track how many hours are the engine/machine working, hours read up to 999,999 hours with 0.1/1 hour resolution; TOT hours can be reset, when replace it to another device, it will be restart from 0 also.
• [Easy to Use] Specifically designed to monitor the power level of battery while charging or discharging. LED Flash for low charge and high charge warning.
