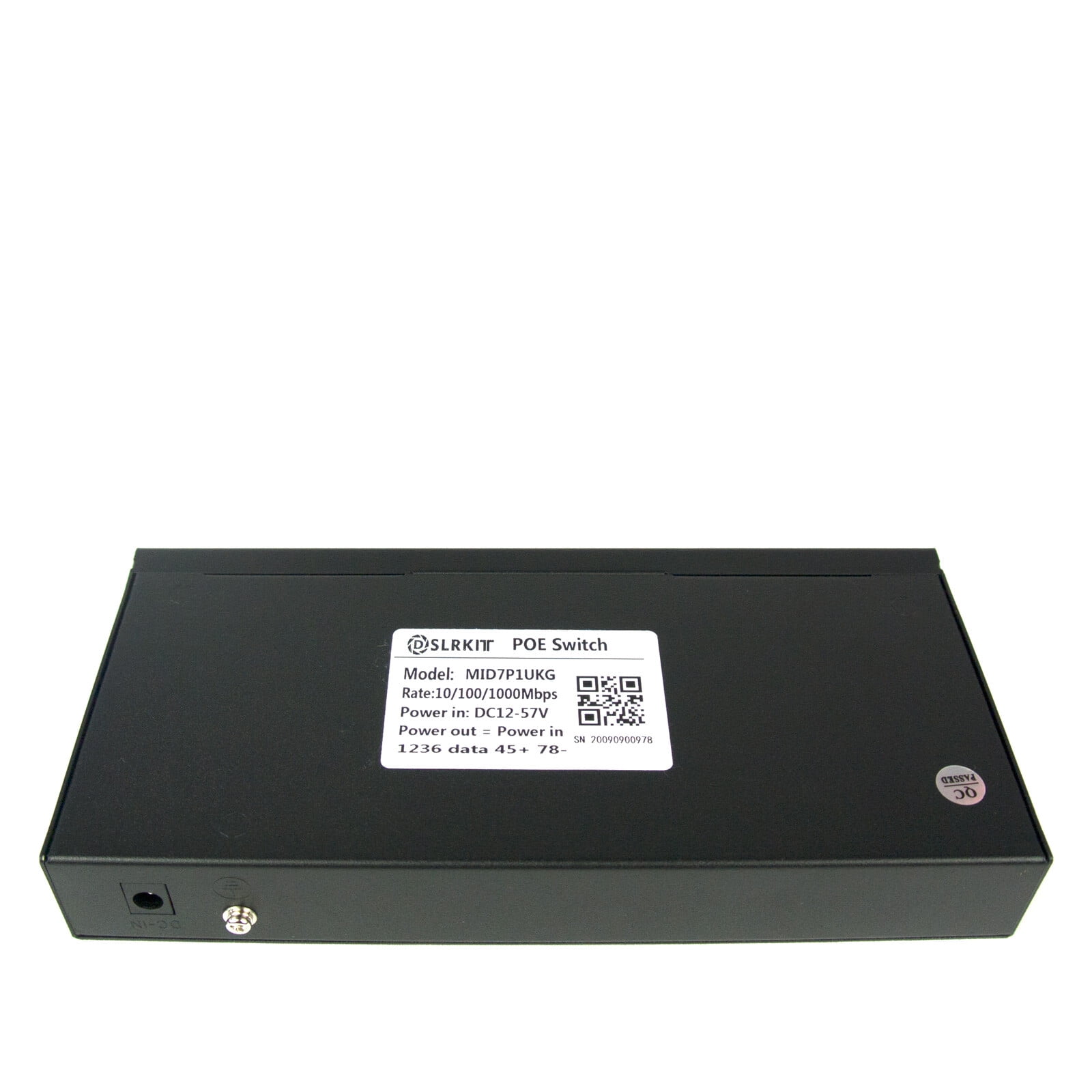

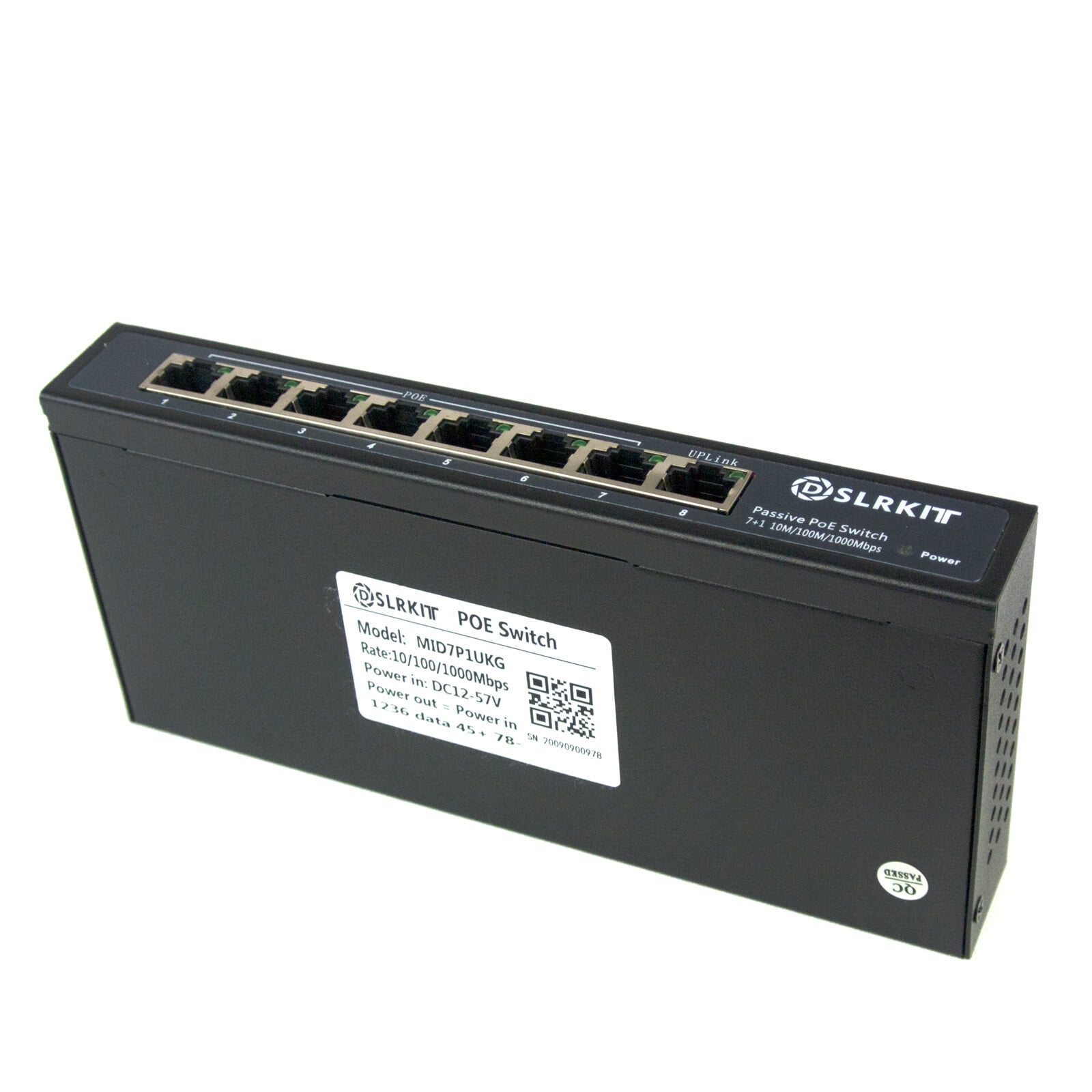

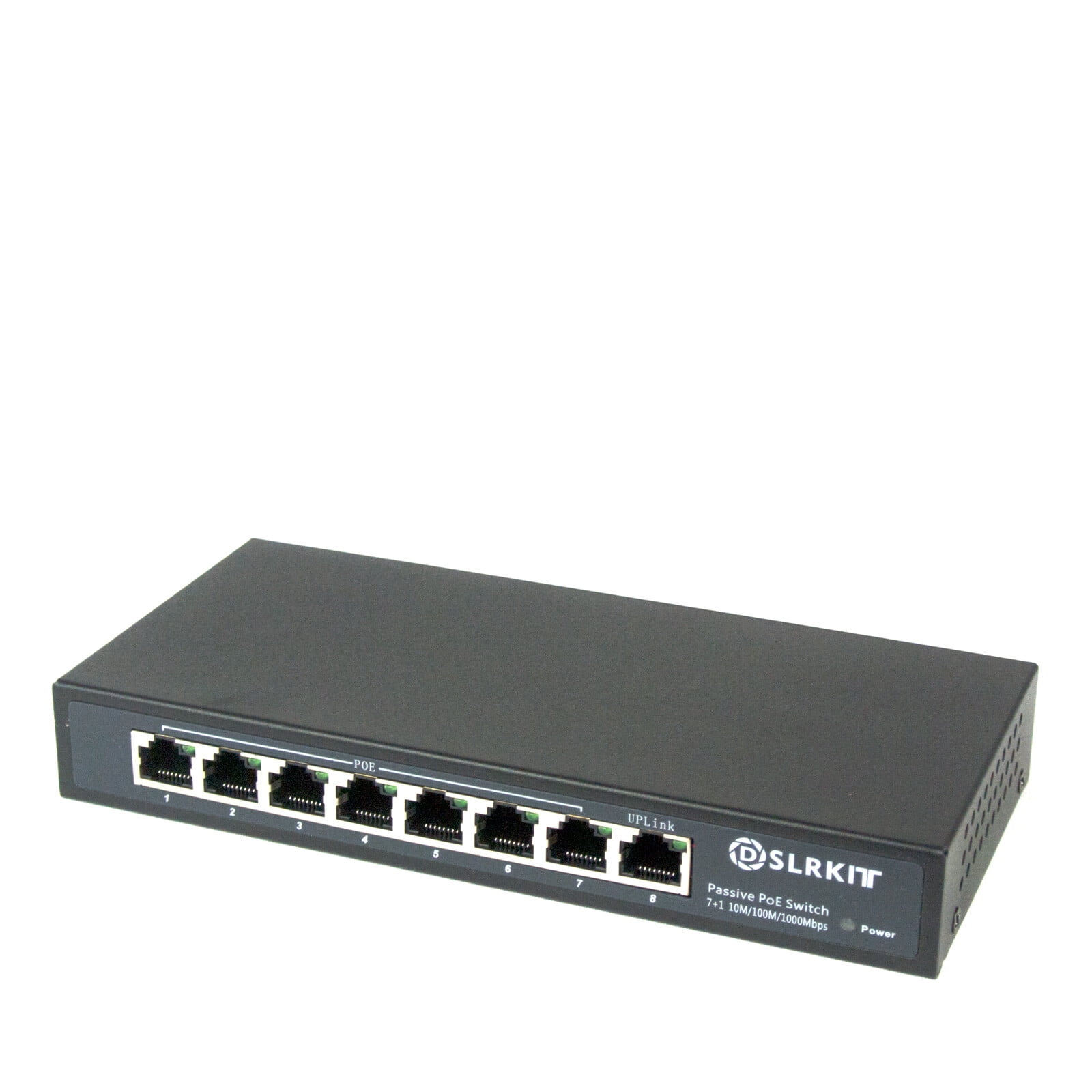

DSLRKIT ALL Gigabit 52V 120W 8 Ports 7 PoE Injector Power Over Ethernet Switch

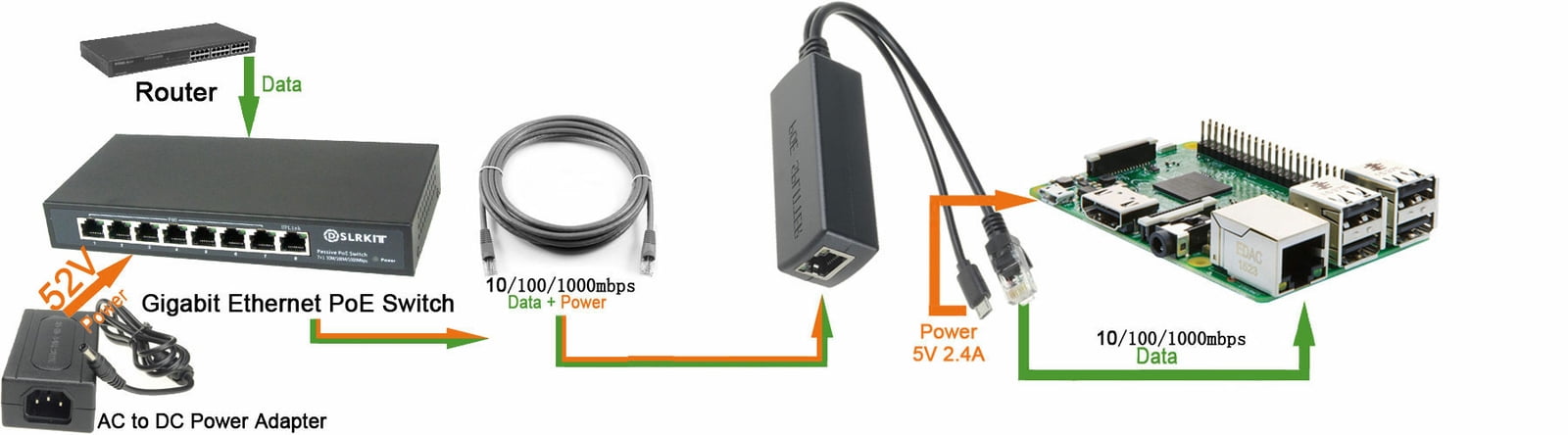

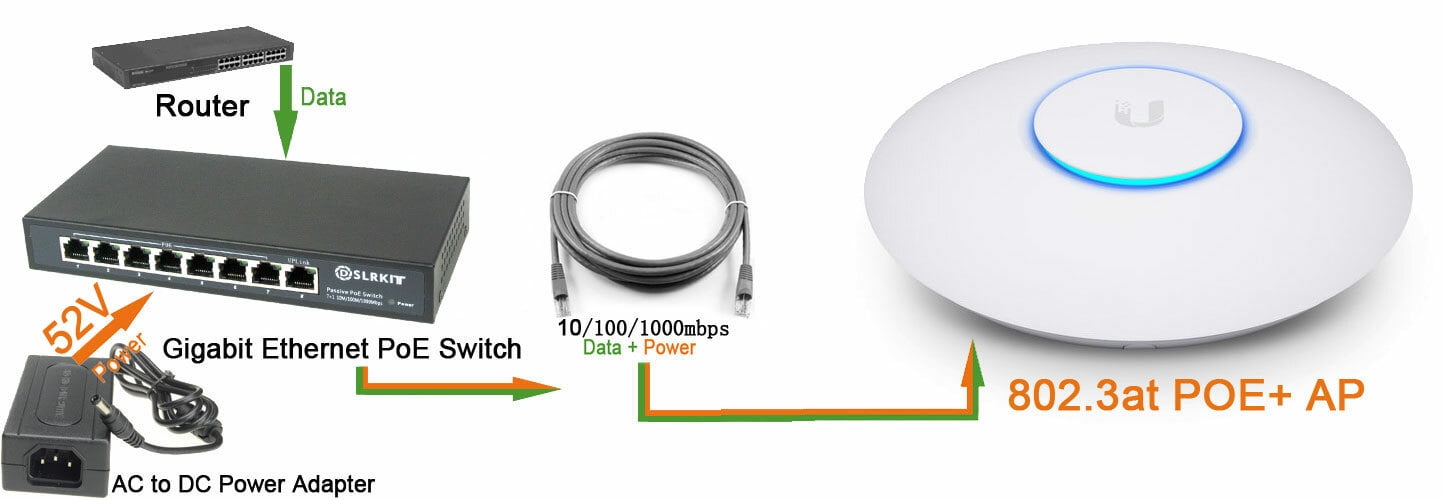

DSLRKIT ALL Gigabit&nbsp;8Ports 52V PoE Switch(1Uplink,&nbsp;7 PoE)<br>ALL Gigabit 10/100/1000Mbps Passive PoE Injector&nbsp;Switch<br><br>Midspan Mode-B <br>Unsolicited Power 52V(4,5+/7,8-)<br>Per port Max 40Watt(52V0.8A)<br>&nbsp;<br>Power Total Output 120Watt(52V 2.7A)<br>Compatible 802.3at 802.3af<br>&nbsp;<br>This is an PassivePower Over Ethernet of&nbsp;8 port 10/100/1000Mbps-T Ethernet switches, including&nbsp;7 unsolicited PoE Ethernet ports and 1 Uplink ports. With an external 110V-240VAC to 52VDC power supply adapter, any one of the&nbsp;7 port can provide output power, each Ethernet port can provide network transmission speeds of up to 10/100/1000Mbps , with Cat5 / 5e / 6 network cable.<br><br> Which compatible with IEEE 802.3af/at Mode-B(4,5+/7,8-) POE switch device, but it does NOT include the 802.3af/at compliant detection feature.&nbsp; It supplies power NO MATTER WHAT, so don't plug the "POE 1~7" side into anything that isn't ready for it.<br> Compatible all 802.3af/at device as Wireless Access Point, IP Phone, IP camera, Gateway , Switch, or More.....<br>UnifiAP: UAP-AC-LR and UAP-AC-LITE not Supported.<br><br><br>Notice:<br> This switch uses POE Mode B and cannot be used on the PowerDevice (PD) Device which only supports POE Mode A. The two new UniFIAP(UAP-AC-LR and UAP-AC-Lite) are known, so it is easy to tell the difference. For example, in the specification of UAP-AC-LR, it is written "PoE Mode 802.3AF /A" to indicate that 802.3AF standard A Mode is only supported.<br> If you are the user of UAP-AC-LR and UAP-AC-LITE,please go to my store to buy another 24V Gigabit POE Switch.<br><br>Note:<br> If your camera is with word “12V/PoE” as this picture shows, then please select this 52V PoE Switch, do not select 12V PoE Switch.&nbsp;<br> Because "12V/PoE" means it can offer power supply to camera via 12V DC port or 48V(or 52V) PoE Ethernet port.<br><br>Please do not connect any "NONE PoE gigabit ethernet device and Uplink device" on "PoE 1X~PoE 7X" port, this will damage your device..<br>NONE PoE gigabit ethernet device and Uplink device can only access "8x" port, Please do not access"PoE 1X~ PoE 7X", this will damage your device.<br><br><br>Features:<br>8 x 10/100/1000Mbps Auto-negotiation Fast Ethernet RJ-45 ports with 7-Ports PoE function(port 1-port 7)<br>Midspan Mode-B Unsolicited Power 52V (4,5+/7,8-)<br>Switch Controller Chips Realtek RTL8370N<br>Per PoE&nbsp;port Maximum current: 0.84A<br> Supports PoE power up to 120W for all PoE ports, Per PoE port Max&nbsp;40Watt(52V 0.84A)<br>Each port supports auto MDI/MDIX, so there is no need to use cross-over cables.<br>Full/half duplex transfer mode for each port.<br>Wire speed reception and transmission.<br>Up to 2K unicast address entities per device. Self-teaming, and table aging.<br> PoE power on RJ-45<br> Power+ : pin 4 &amp; pin 5; Power- : pin 7 &amp; pin 8 <br> AC to DC power supply<br> Input: 100V~240VAC, 50Hz~60Hz. Output: 52VDC 2.7A <br> Power Consumption<br> 2.0 watts(max with no PD device connected)<br> 120watts(7 PoE ports Total Max. 120Watt) <br>Product Dimensions 200mm W x 95mm D x 30mm H<br> Temperature<br> Operation Temperature:0 ~40℃ (32 ~104℉)<br> Storage Temperature: -40 ~70℃(-40 ~158℉) <br> Humidity&nbsp;<br> Storage Humidity 5%~90% non-condensing, Operating Humidity 10%~90% non-condensing <br><br>Item Included:<br> &nbsp;&nbsp;DSLRKIT DIM7P1UKG 8 Ports Gigabit Ethernet PoE switch x1<br>&nbsp; AC Power Adapter(DC OutPut: 52V/2.7A) x1<br>&nbsp; AC Power Cable x1

• 8 x 10/100/1000Mbps Auto-negotiation Fast Ethernet RJ-45 ports with 7-Ports PoE function(port 1-port 7)
•  Supports PoE power up to 120W for all PoE ports, Per PoE port Max 40Watt(52V 0.84A)
• Each port supports auto MDI/MDIX, so there is no need to use cross-over cables.
